KVM/MV2 Series
Micro Vibration Motors – KVM/MV

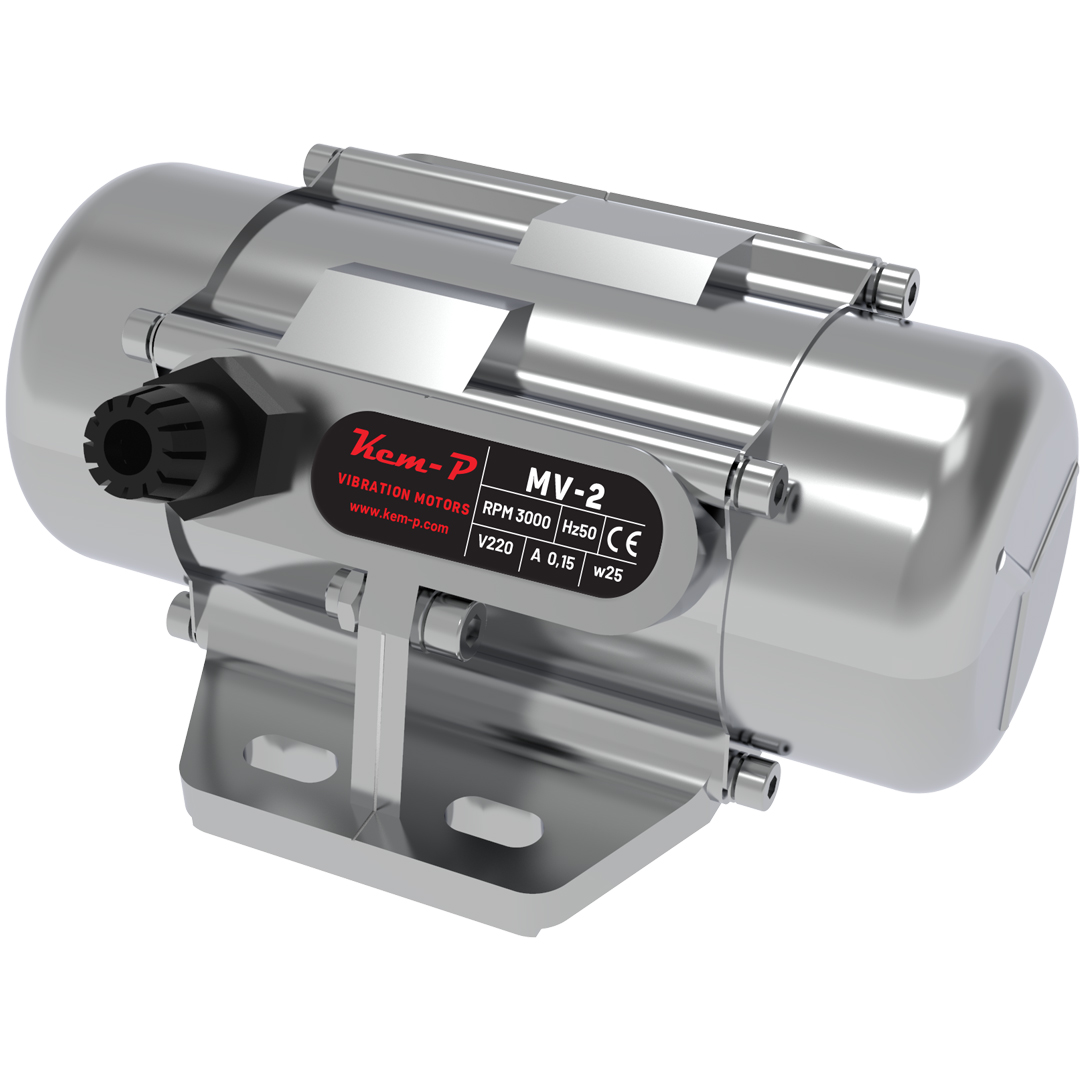

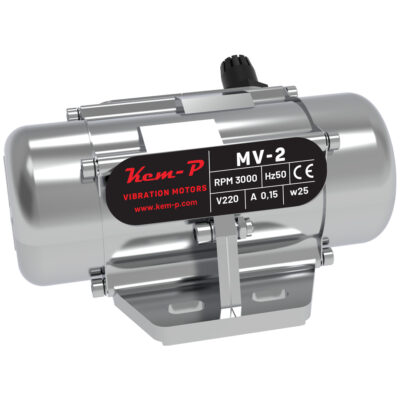

Kem-P KVM-MV Series Micro Vibration Motors are 2-pole industrial vibration motors that produce power in the range of 0.025 kW - 0.05 kW, providing 3000 rpm, 50 Hz to 60 Hz operation option and centrifugal force between 22 kgf and 62 kgf. KVM-MV Series Micro Vibration Motors have the IP65 protection class.
![Mikro Vibrasyon Motorları – KVM/MV Serisi 3 uruniconlar](https://www.atareduktor.com.tr/wp-content/uploads/uruniconlar.jpeg)
Expert Support
![Mikro Vibrasyon Motorları – KVM/MV Serisi 4 Ata Redüktör Motor7](https://www.atareduktor.com.tr/wp-content/uploads/Ata-Redüktör-Motor7-1024x768.jpeg)
WANT TO KNOW MORE INFO
Vibrating machines in general, vibrating screens, vibrating conveyors and extractors, compaction tables, foundry ladles, fluidized beds, spiral elevators.
- Voltages
- 110 - 230 V
- 380 - 405/660-700 V AC
- Centrifugal force: 22 kgf to 62 kgf
- 3000 rpm
- H class insulation
- Mechanical protection IP 65
- Working ambient temperature from -30°C to +40°C
- Universal foot connection dimensions
- Reinforced strong foot design, aluminum alloy metal injection body
- High-quality bearings
- Concrete Compaction
- Big Bag unloading
- Big Bag filling
- Big Bag compression
- Circular vibrating screens
- Decoration station
- Cleaning the filters
- Trucks and industrial vehicles
- Parquet and block machines
- Semolina purifier
- Shale shakers
- Vibrating floors for silos
- Vibrating extractors for silos and hopper
- Silo transport vehicles
- Vibrating tables for testing
- Vibrating fluidized beds
- Vibrating feeders
- Vibrating gravimetric separators
- Vibrating grid feeders
- Vibrating channels
- Vibratory sorters
- Vibrating spirals
- Soil recovery strainer
- Bagging machines
- Vibro dryers
- Vibropresses
- Vibro scans
- Building and Construction Sector
- Energy sector
- Systems and Machines
- Heavy Industry Sector
- Feed Sector
- Food industry
- Plastics and Chemistry Sector
- Environmental Technologies
Technical Documents
Model Type | Frekans Frequency (Hz) | Santrifüj Kuvveti Centrifugal Force ( Kg/F ) | Giriş Gücü Input Power ( W ) | Nominal Akım Nom. Current (Amp) | Motor Tam Boy Ölçüsü |
---|---|---|---|---|---|
KVM-30-MV-M01 | 50 | 20 | 24 | 0,15 | 145 mm |
KVM-30-MV-M02 | 50 | 40 | 50 | 0,18 | 164 mm |
KVM-30-MV-001 | 50 | 20 | 24 | 0,15 | 145 mm |
KVM-30-MV-002 | 50 | 40 | 40 | 0,18 | 164 mm |
KVM-30-MV-004 | 50 | 20 | 40 | 0,2 | 145 mm |
Gövde Ölçüleri -Overall Dimensions (mm) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model - Type | A | B | C | ØD | E | M | L | H | G | I | F | N | O |
KVM-30-MV-M01 | 144,5 | 112 | 65 | 61 | 32 | 32 | 91 | 14 | 7 | 31 | 8 | 54 | 22 |
KVM-30-MV-001 | 144,5 | 112 | 65 | 61 | 32 | 32 | 91 | 14 | 7 | 31 | 8 | 54 | 22 |
